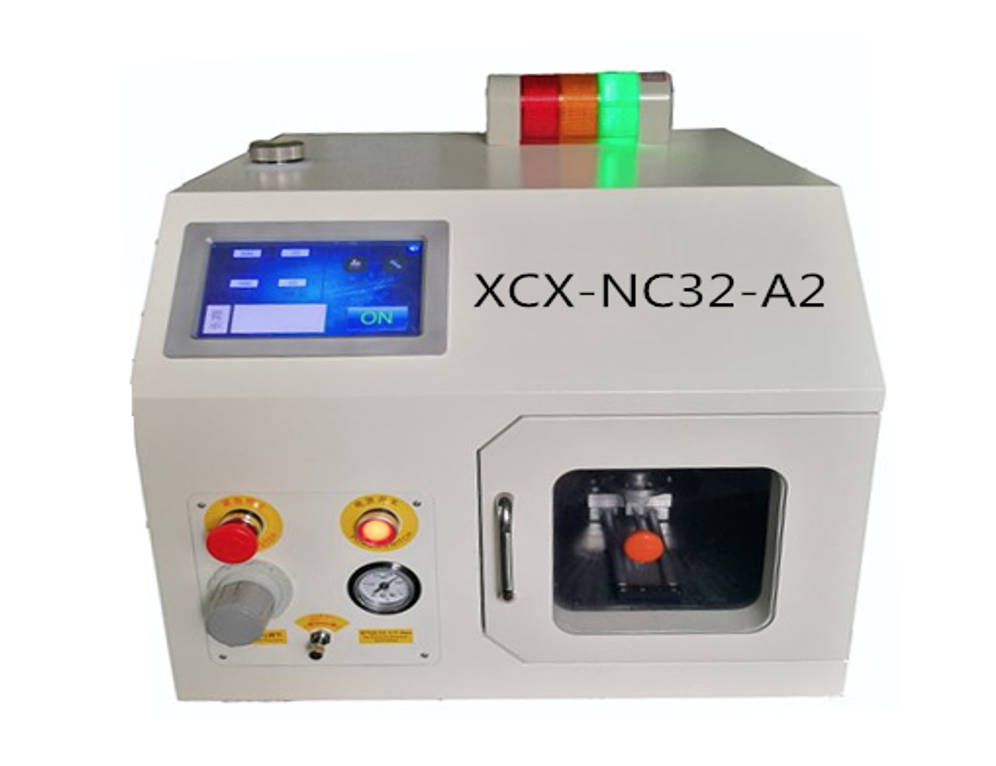

Nozzle Cleaning Machine

Suggested alternatives:

    ¥ 0.00 0.0 CNY ¥ 0.00

    ¥ 0.00

    This combination does not exist.

    Inquiry Now   >                                                                                                                                                    1.Ready for immediate shipment.
    2.Throughly inspected and maintained.
    3. With warranty

    This Auto cleaning machine with automatically cleaning and drying function, can clean 32pcs nozzle one time, Use industrial waterUtilize the pulse of water, no damage to the suction nozzle, no pollution to the environment。
    In the field of the semiconductor industry today, with the development of SMT, small parts into small, high-density mounting and base for reality, and future development trends will be further component miniaturization. Since the chip mount, solder flux contamination adsorption nozzle as a result of the frequent failure to produce a great deal of influence, has become an urgent problem to be solved.

    Fine mist particles
    shredding continuous pressurized water, produce about 3-10um mist particles, so that it can clean the tiny nozzle aperture wall dirt.
    Auto  nozzle cleaning machine QXJ-NC32 uses pulse cleaning methods may be the inner wall of the nozzle in a short time, before removing the dirt can not be removed, using a non-toxic industrial pure water (PH value 5-7 softener), when cleaning without damaging the nozzle.
    Pulsed-field kinetic energy
    Sonic (V = 360m / s) to create a strong impulse to the kinetic energy of the jet nozzle, the nozzle to be cleaned top to form a continuous energy field, crushing surface and inside dirt, achieve the purpose of cleaning.
    Centralized gas emissions



    Pure water filtration Multilayer



    High stability



    Low noise



    NC32 compared with traditional methods

    QXJ-NC32

    Ultrasonic cleaning

    Inject + Blowing

    Needle poke

    Cleaning effect

    ◎

    △

    △

    △

    Cleaning fluid

    Industrial pure water

    Chemical solvents

    Chemical solvents

    -

    Gas

    No have

    Have

    Have

    -

    Operating environment

    ◎

    X

    X

    X

    Environmental measures

    ◎

    X

    X

    ◎

    Small Nozzle

    ◎

    X

    X

    X

    Nozzle Painted

    Protect

    -

    △

    △

    Nozzle Reflector

    Protect

    -

    △

    △

    QR Code

    Protect

    -

    △

    △

    Cleaning Quality

    ◎

    △

    X

    X

    Specifications

    Size

    540 ×570 ×530

    Nozzle tip size

    0201-2125

    Weight

    62KG

    Tray size

     32 pcs Nozzle

    Air pressure

    0.5-0.6Mpa

    Efficiency

    400 pcs/H

    Air consumption

    Below 280 NL/ min

    Voltage

    AC:110-220V

    Fluid

    Industrial pure water

    Power

    150W

    Water tank capacity

    1.5L

    Wastewater collection

    Centralized collection of outlet

    Display function

    Touch screen,

    digital pressure gauge pointer pressure gauge

    Interface login

    Administrator password login

    Liquid level detection

    high and low level alarm

    Alarm mode

    Audible and visual alarm, interface prompt
